Component Parts
Less honorary seat: PC
Upper cover: PC
Rotor: POM
O-RING: VMQ
Oil: silicone oil

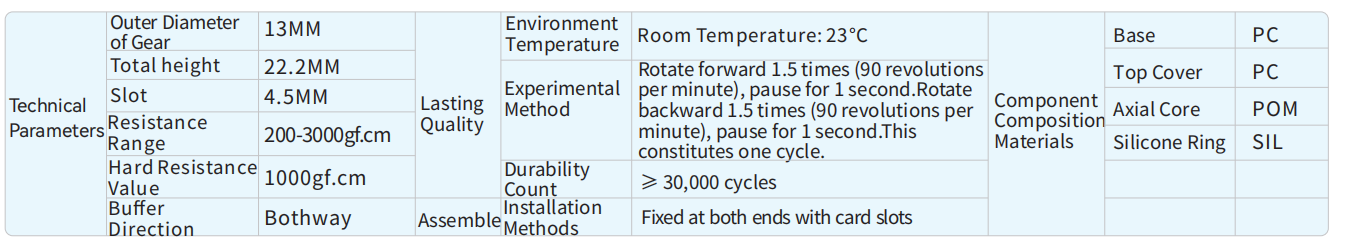

Technical Specifications
技术参数 | 外径 | 13MM | 耐久性能 | 环境温度 | 常温23℃ | 部件构成材料 | 下座 | PC |
总高 | 22.2MM | 实验方法 | 向前旋转1.5圈（90r/min），停1秒。向后旋转1.5圈（90r/min），停1秒，为一次； | 上盖 | PC | |||
卡槽 | 4.5MM | 轴芯 | POM | |||||
阻值范围 | 200-2000gf.cm | 胶圈 | SIL | |||||
硬性阻值 | 1000gf.cm | 耐久次数 | ≥3万次循环 | |||||
缓冲方向 | 双向 | 组装 | 安装方式 | 两端卡槽固定 |
Characteristic of Axial Dampers for Automotive T101
Damper torque (23°C ambient temperature) changes with speed. Typically, torque increases with increasing rpm, as shown in the figure above

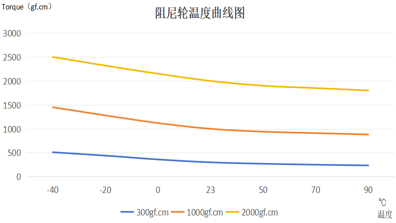

Temperature - torque characteristic (20r/min)
The torque of the damper (speed: 20r/min) changes with changes in ambient temperature. Typically, torque increases at lower temperatures and decreases at higher temperatures, as shown in the graph above
