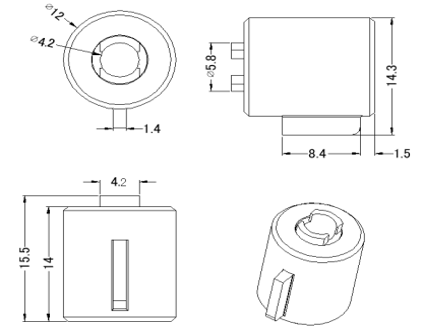

![Drawing Drawing](data/watermark/20231019/6530bc9074f42.png)
Less honorary seat: PC
Upper cover: PC
Rotor: POM
Gear: POM
O-RING: VMQ
Oil: silicone oil
Duribility
Ambient temperature: normal temperature 23°
Conditions: One rotation (1 turn) / 1s - pause / 1s - Reverse rotation (1 turn) / 1s - pause / 1s
Lifetime: 30,000 times
Precision Tuning: Each damper is meticulously tuned to provide a smooth and consistent operation, ensuring optimal damping characteristics for your specific application.
Robust Construction: Built with durable materials, the RD-T012B is designed to withstand the test of time and resist wear and tear in even the most challenging environments.
Versatile Application: Suitable for a wide range of applications, from automotive suspension systems to industrial machinery, the RD-T012B offers a versatile solution for various damping needs. View our industies solution!
Easy Integration: With a user-friendly design, the RD-T012B is easy to install and integrate into existing systems, minimizing downtime and setup time.
The Barrel/Axial Damper RD-T012B is designed to excel in the following applications:
Automotive Suspension: Enhance the ride comfort and handling stability of passenger and commercial vehicles.
Car Roof Handles: Enhance passenger safety and comfort with a damper that ensures smooth and controlled operation.
Vacuum Cleaners: Provide a reliable and consistent performance with a damper that supports the vacuum's movement and retractable hose.
Medical Equipment: Ensure smooth and controlled movement in medical devices, contributing to patient safety and comfort.
Ready to discover how the RD-T012B can elevate your project's performance? Contact Teao today to discuss your requirements and experience the difference our precision engineering can make. Any questions please feel free to contact us!
![Characteristic of Barrel/Axial Damper RD-T012B Characteristic of Barrel/Axial Damper RD-T012B](data/watermark/20231019/6530bd0ef1c46.jpg)
Damper torque (23°C ambient temperature) changes with speed. Typically, torque increases with increasing rpm, as shown in the figure above
![Temperature - torque characteristic (20r/min) Temperature - torque characteristic (20r/min)](data/watermark/20231019/6530bd15676de.jpg)
The torque of the damper (speed: 20r/min) changes with changes in ambient temperature. Typically, torque increases at lower temperatures and decreases at higher temperatures, as shown in the graph above

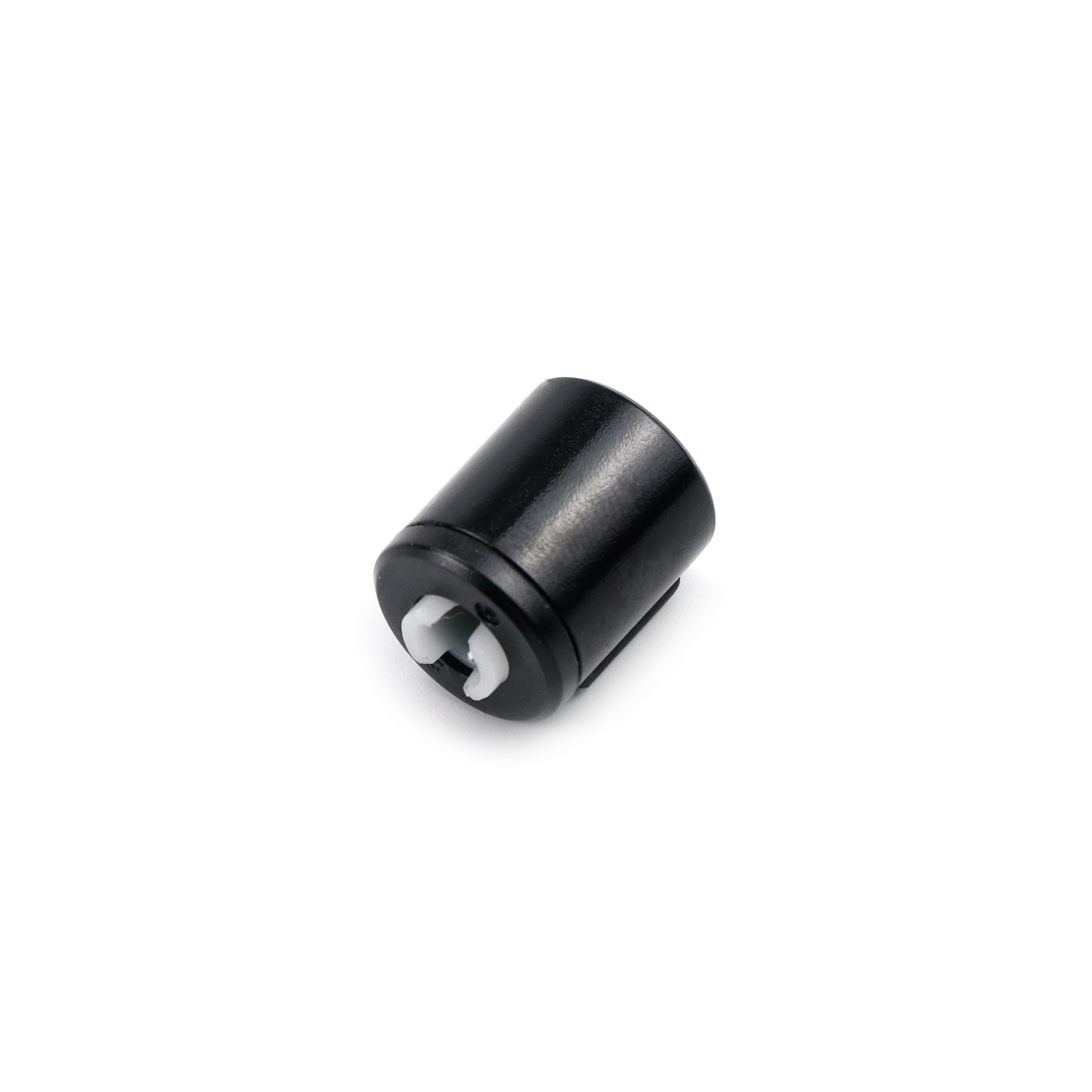

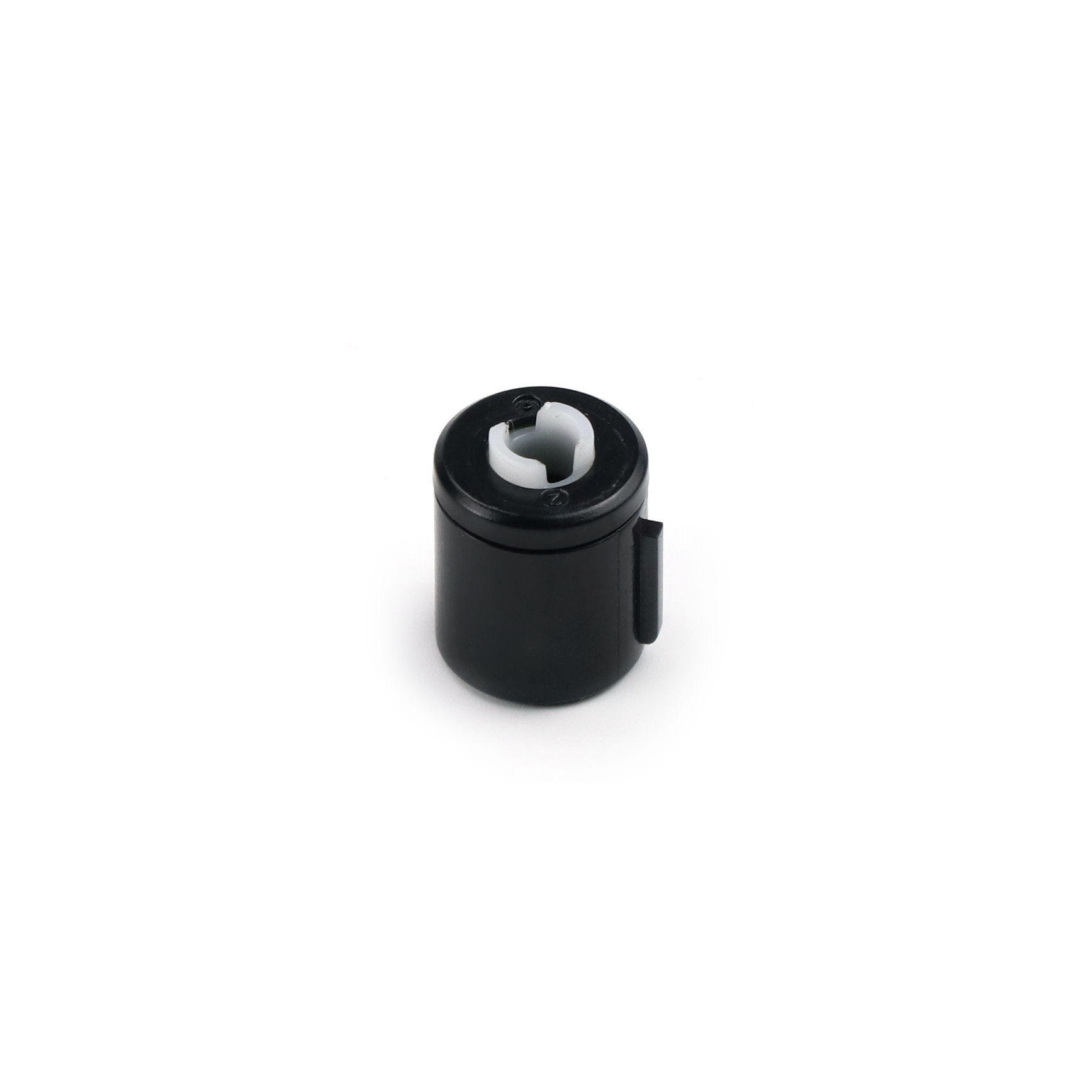

Barrel/Axial Damper RD-T012B
