RD-V107 is suitable for interior damping devices in household appliances, car glove compartments, and car storage boxes.

RD-V107 is suitable for interior damping devices in household appliances, car glove compartments, and car storage boxes.

Characteristics

SOC Free, For Glove box, one-way

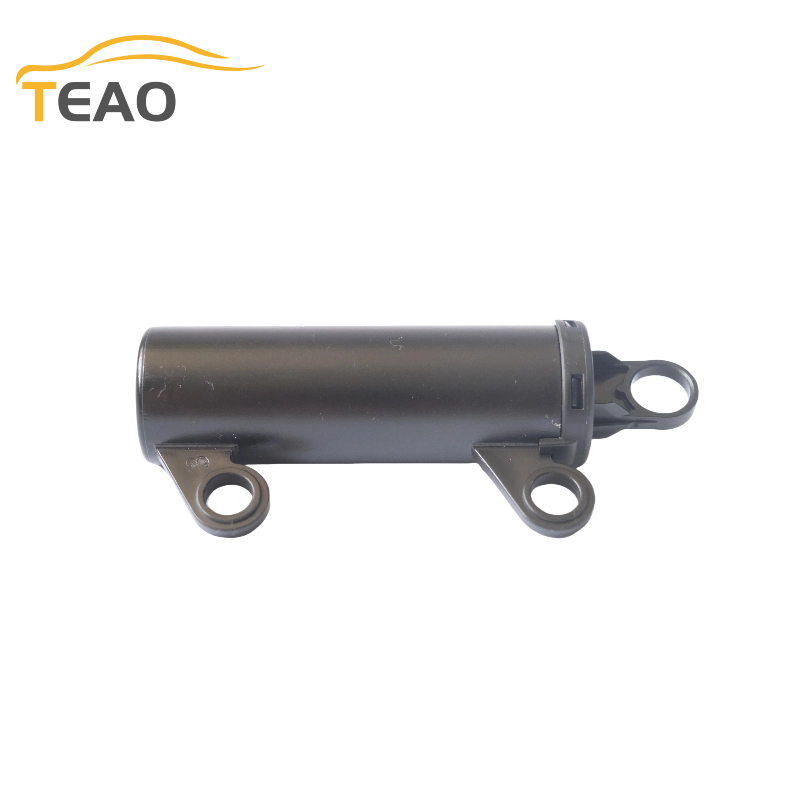

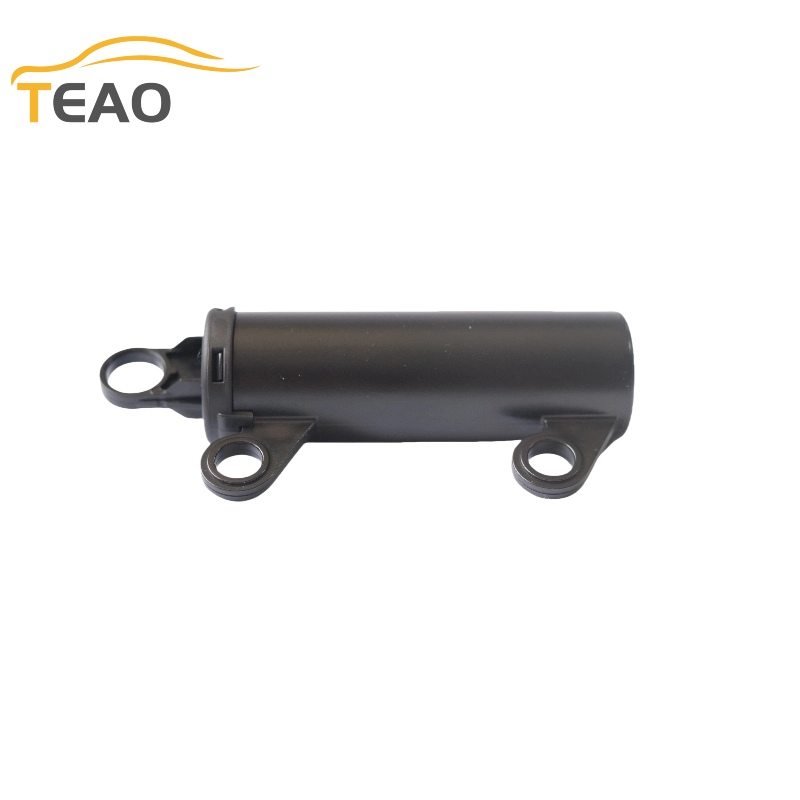

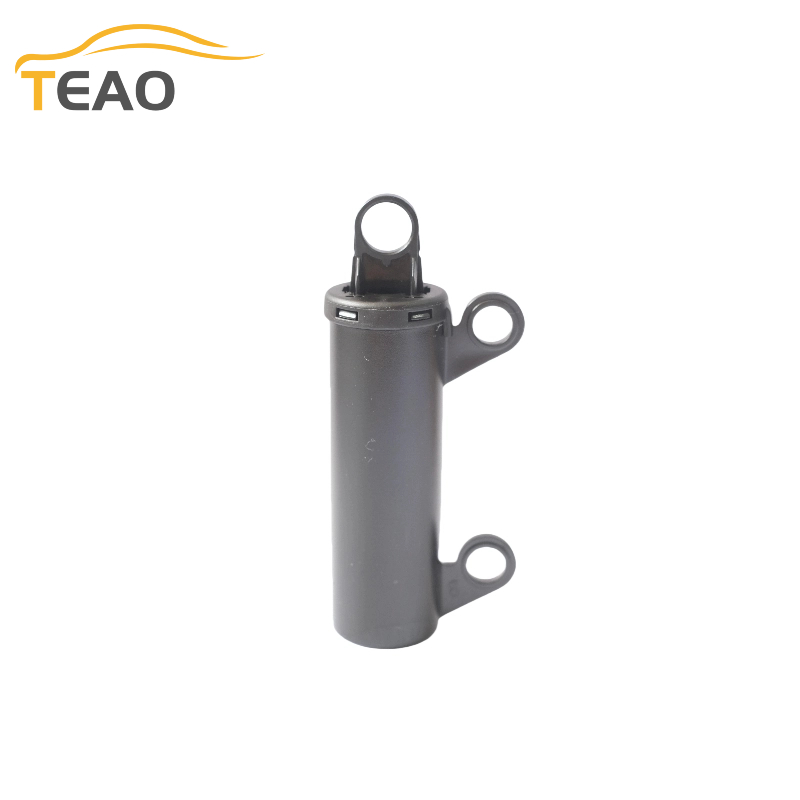

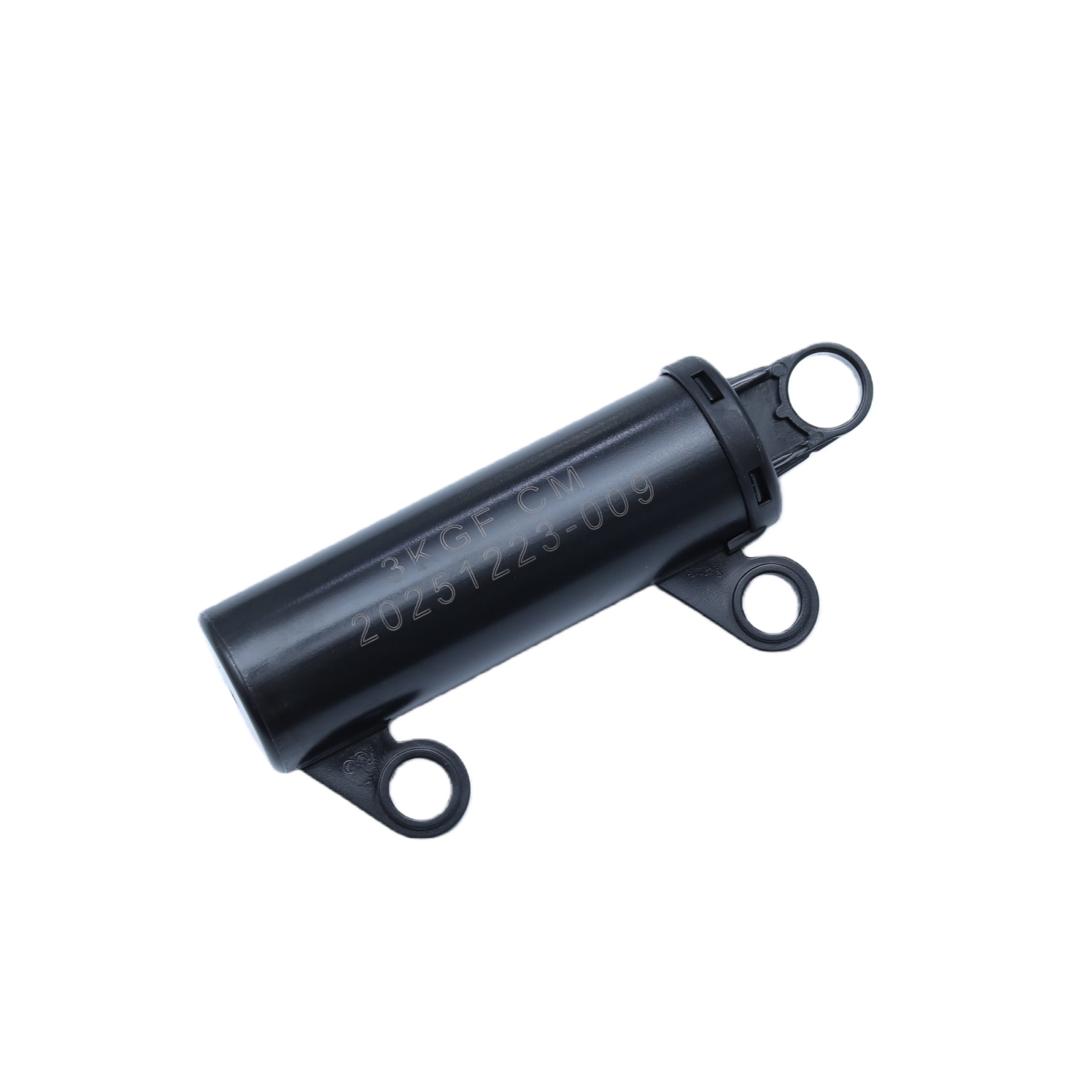

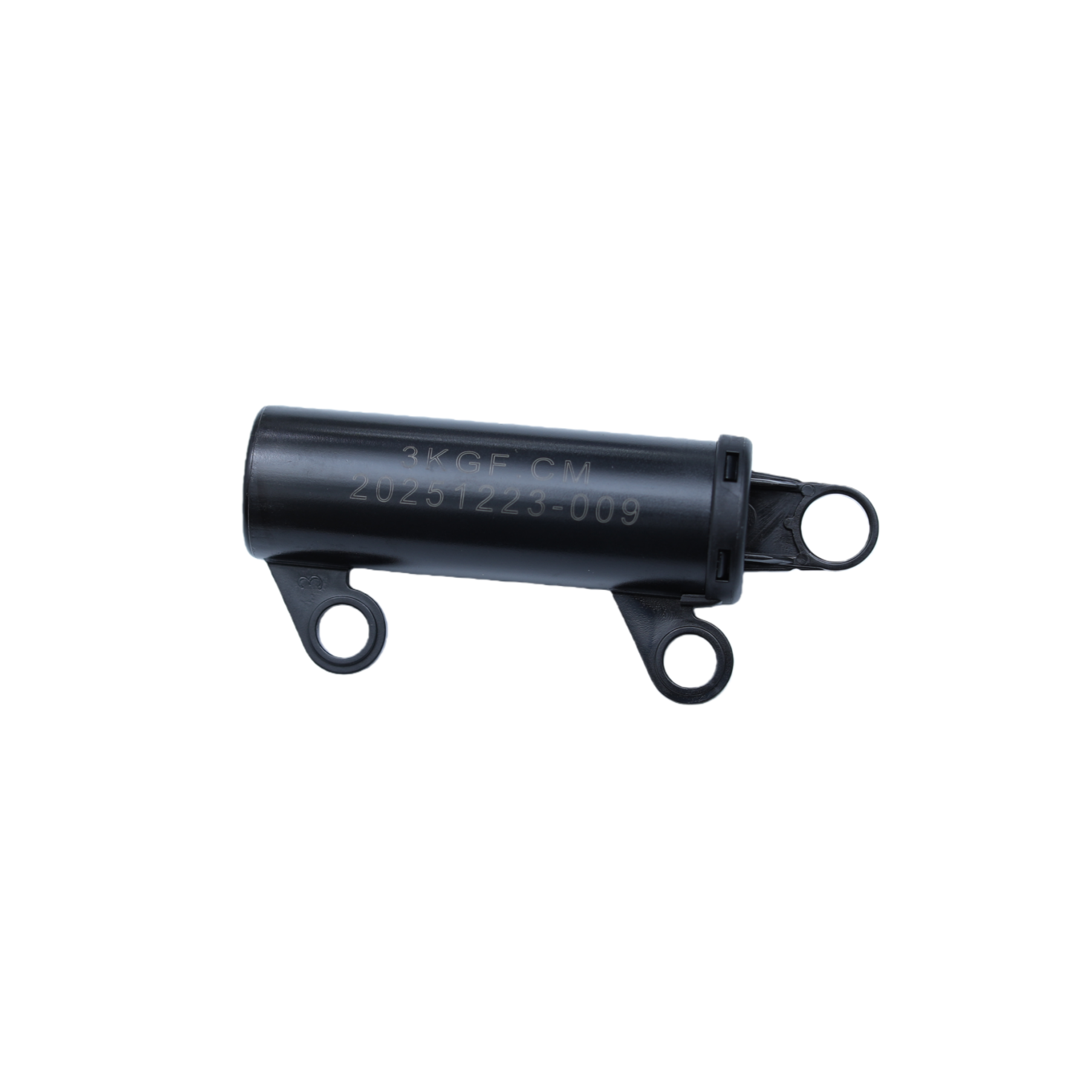

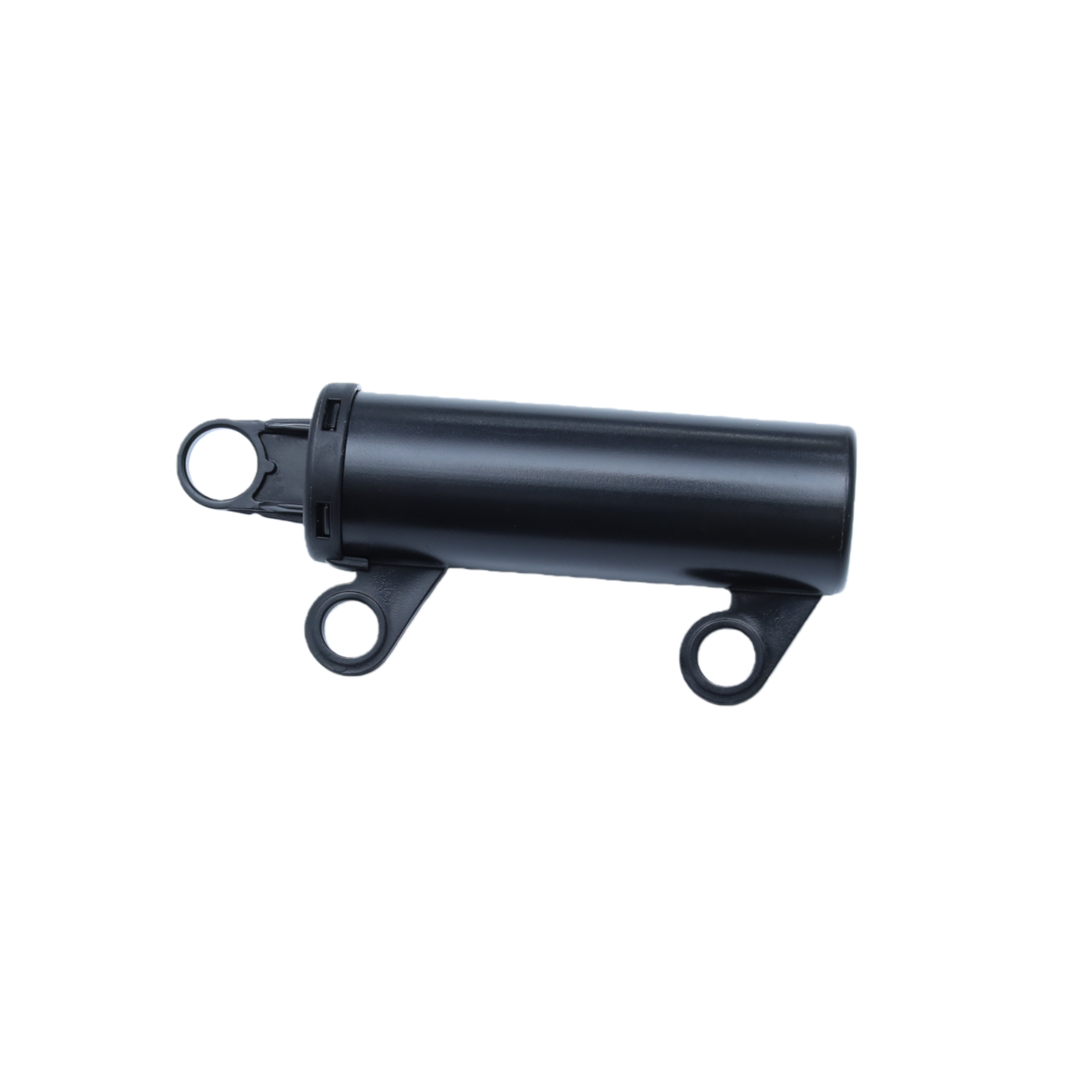

Teao Air Damper RD-V108 is designed for car glove boxes, providing controlled movement to ensure smooth opening and closing. Suitable for BYD series models and etc.

Torque

1 - 3

Kgf.cm

Inquire Now

Component Parts

Less honorary seat: POM

Upper cover: PP

Rotor: POM

Pull handle: POM

O-RING: VMQ

Oil: silicone oil

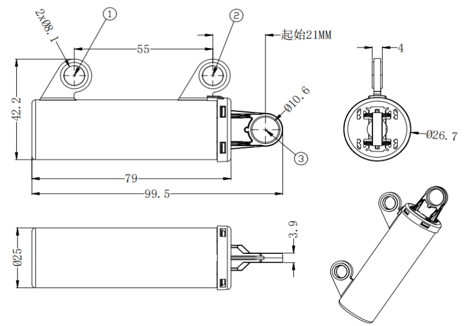

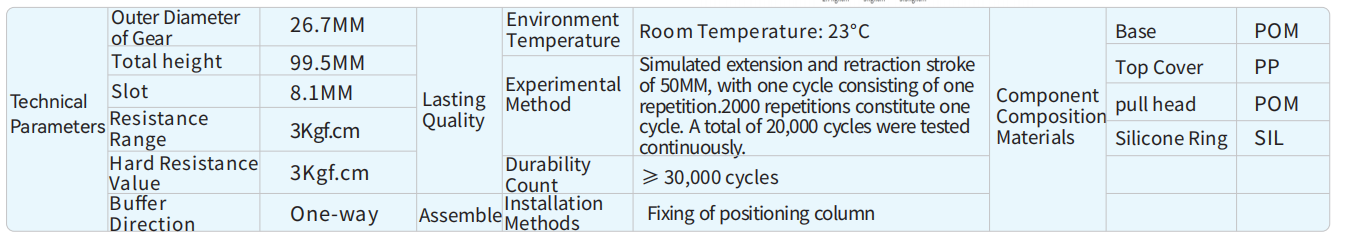

Technical Specifications

技术参数	外径	26.7MM	耐久性能	环境温度	常温23℃	部件构成材料	下座	POM
	总长	99.5MM		实验方法	模拟伸缩行程50MM，往复为一次，2000次为一周期，连续2万次测试		上盖	PP
	定位孔	8.1MM					拉柄	POM
	阻值范围	3Kgf.cm					胶圈	SIL
	硬性阻值	3Kgf.cm		耐久次数	≥2万次循环
	缓冲方向	单向	组装	安装方式	定位柱固定

Characteristic

Damper torque (23°C ambient temperature) changes with speed. Typically, torque increases with increasing rpm, as shown in the figure above

Temperature - torque characteristic (20r/min)

The torque of the damper (speed: 20r/min) changes with changes in ambient temperature. Typically, torque increases at lower temperatures and decreases at higher temperatures, as shown in the graph above
